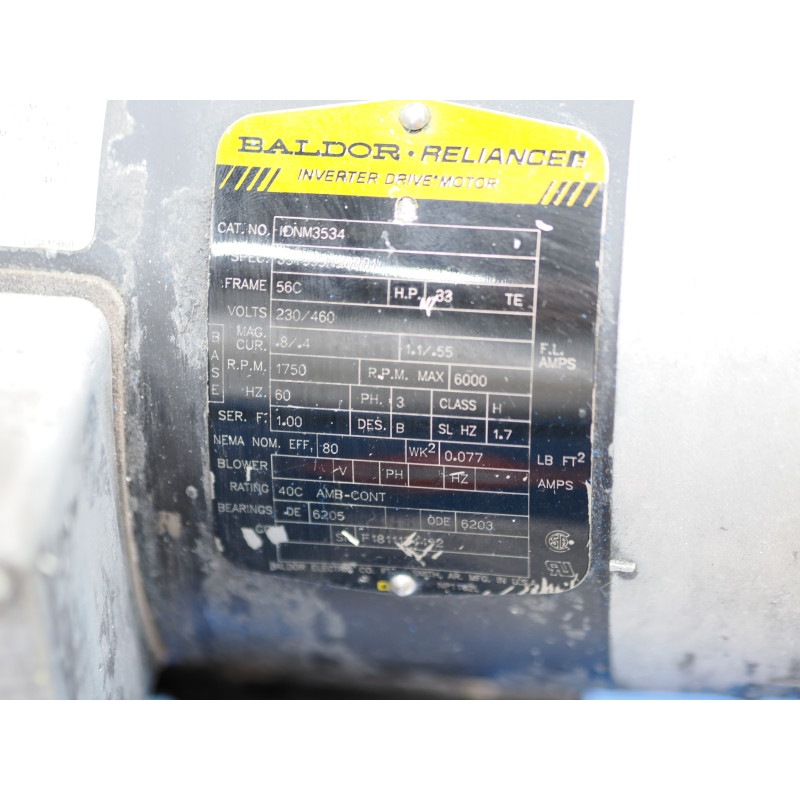

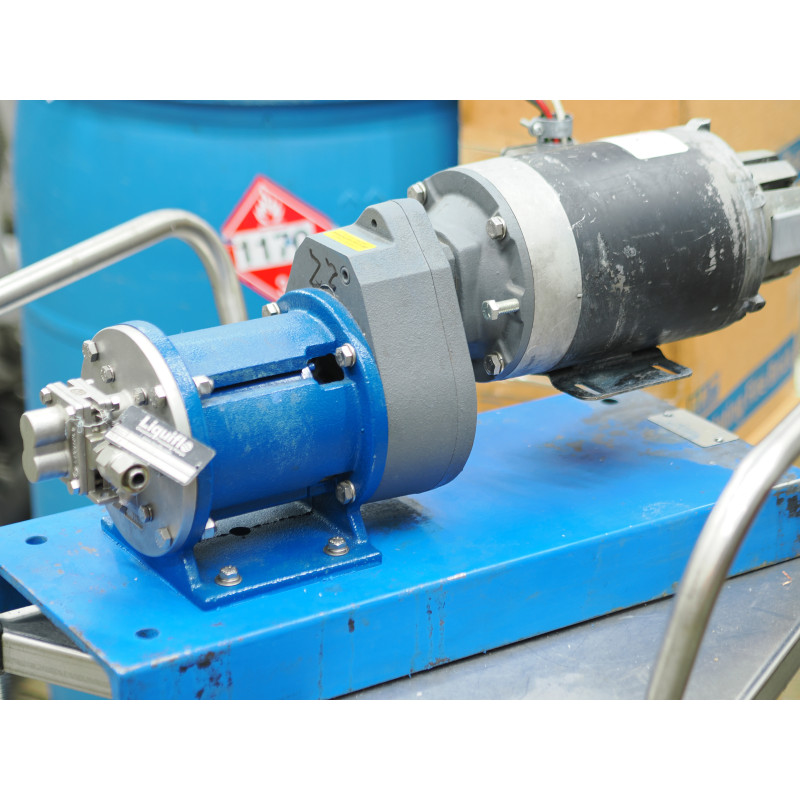

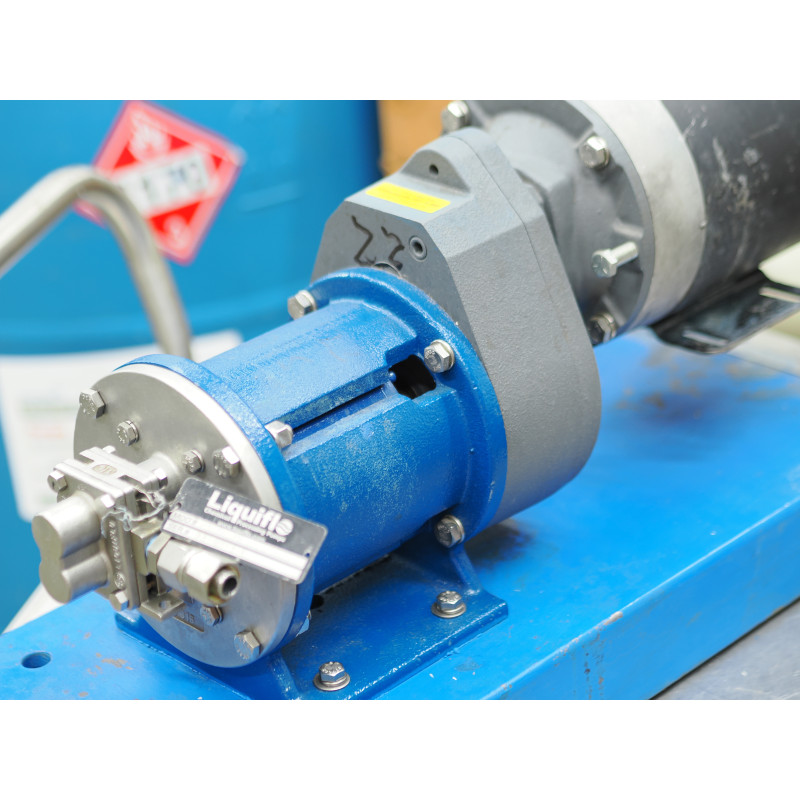

Liquiflo H1FS164B002006US Gear Pump with Reducing Gear and Baldor Reliance Motor 220V / 460V 3 phase


Perfect working and cosmetic condition.

We are at Labcradle are specializing on Laboratory Equipment Sales and Service. All our pump are either fully rebuild or fully tested to confirm that they are 100% operational and perform to their best.

  • Liquiflo H-Series Gear Pumps are manufactured from 316 Stainless Steel
  • Mag-drive coupling

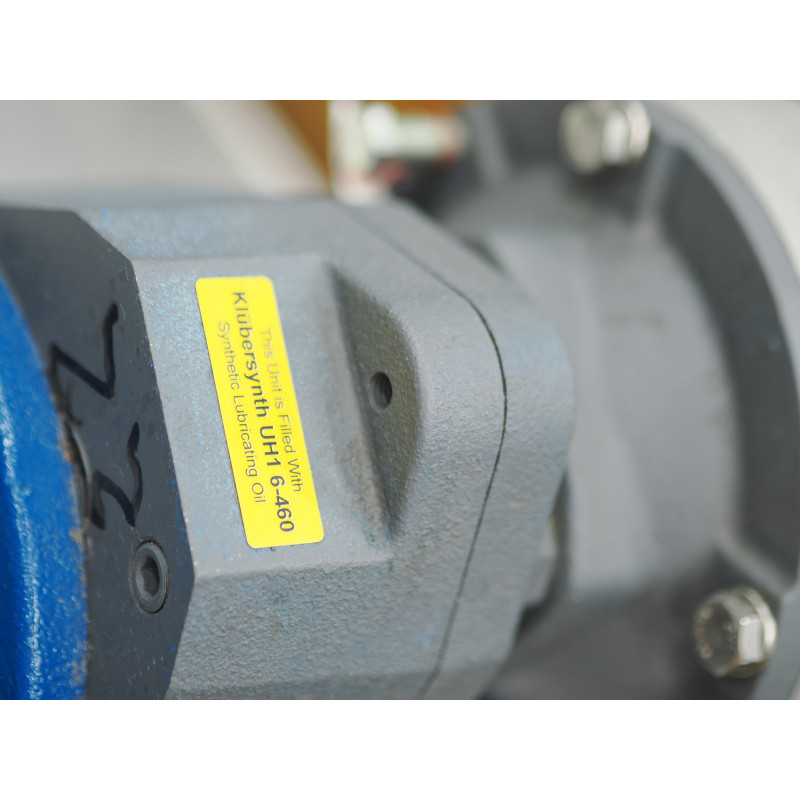

  • Reducing Gear for increased power
  • Pump a broad range of chemicals, such as polymers, solvents, acids, caustics and other corrosive liquids based on configuration below.
  • Base plate is not included, if required pump will have to go by freight

1. Liquiflo Series H gear pump
2. SS316 Food Grade 316 Stainless Steel Housing
3. Alloy-C Drive Gear
4. 316SS Idle Gear
5. Silicone Carbide Plate

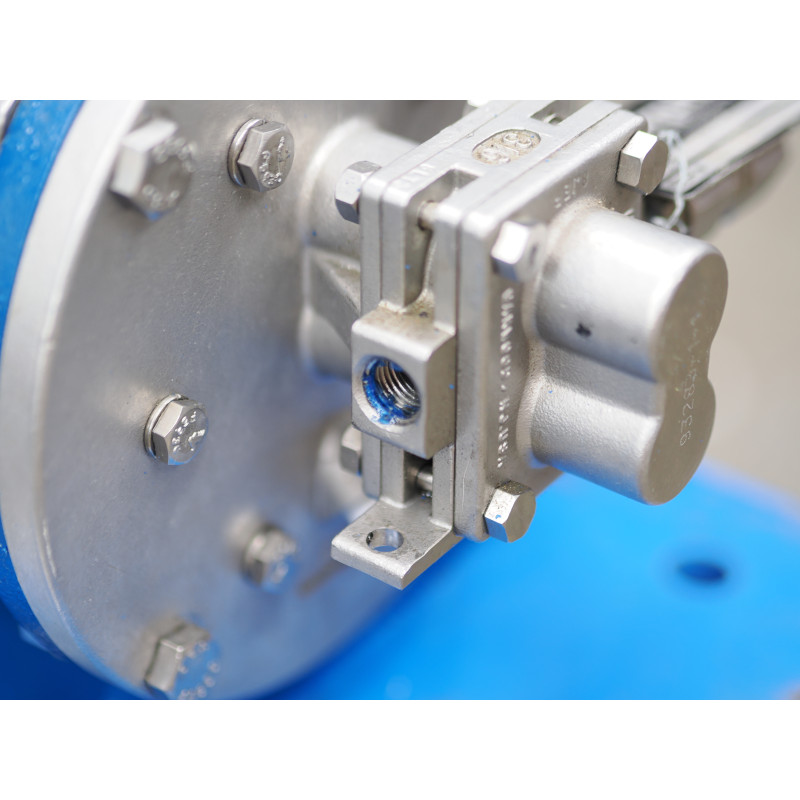

6. 1/4" NPT Ports (NPT to compression adapter is not included, but available)

Model H1F
 Heavy Duty Industrial Gear Pump
 316 SS
 Mag-Drive
Port Connections
1/4" NPT/BSPT

Max Flow Rate0.5 GPM; 1.8 LPM
Max Differential Pressure225 PSI; 15.5 BAR
Max Discharge Pressure300 PSIG; 20.7 BARG
Max Temperature500 °F; 260 °C
Min Temperature-40 °F; -40 °C
Max Viscosity100,000 CPS (mPas)
Max Speed1750 RPM
NPSHR @ Max Speed3 FT; 0.9 M
Lift (Dry) @ Max Speed0.5 FT; 0.15 M
Weight (without motor)
  Mag, Close-Coupled
31 LBS; 14 KG


in addition to fiat payments we accept: XMR BTC ETH USDT USDC LTC DOGE ZANO

Write a review

Note: HTML is not translated!
   Bad           Good
Captcha

Liquiflo H1 H1FS164B002006US Gear Pump with Reducing Gear and Baldor Reliance Motor 220V / 460V 3 phase

  • Brand: Liquiflo
  • Product Code:lQFLGR
  • Availability:In Stock

  • US$ USDT 2,174.99


0 reviews / Write a review

Tags: wiped film evaporator pump, wiper pump, gear pump, discharge pump, liquiflo gear pump, liquiflo h1f, liquiflo model h1f, liquiflo h1f gear pump, liquid gear pump, distillation gear pump
