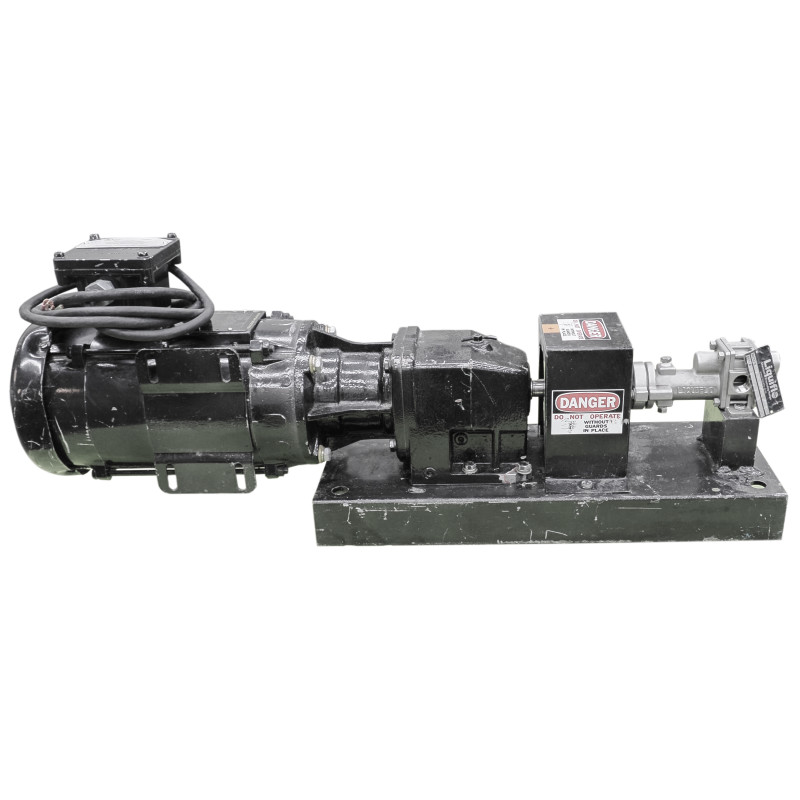

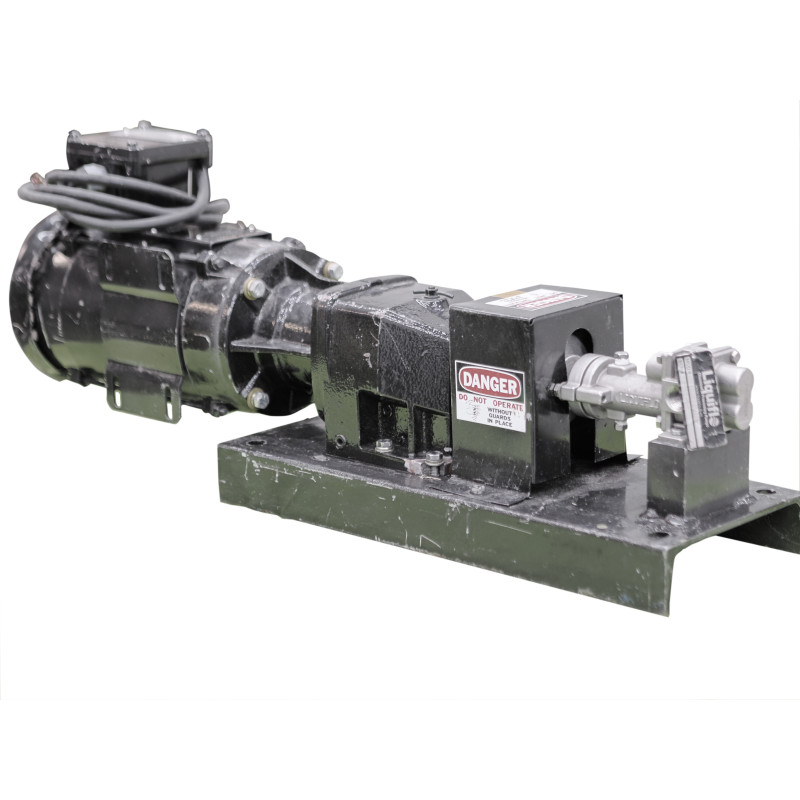

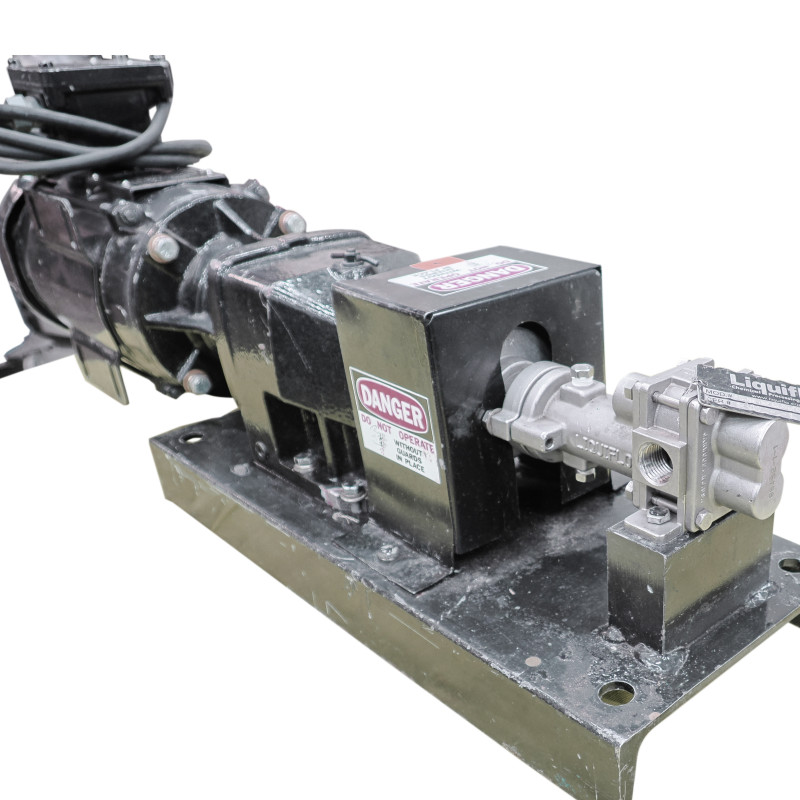

Liquiflo H5RS16EEU000009 Gear Pump with Baldor Explosion Proof motor EX

Perfect working and cosmetic condition.

Liquiflo H5R-Series Gear Pump is manufactured from 316 Stainless Steel and is featuring Long Shaft coupling configuration.

1. Liquiflo H5R Series gear pump

2. SS316 Food Grade 316 Stainless Steel Housing

3. Alloy-C and SS316 Gears handle high temperatures

4. Carbon 60 Bearings and Plate

5. 50lb torque Long Gear Coupling

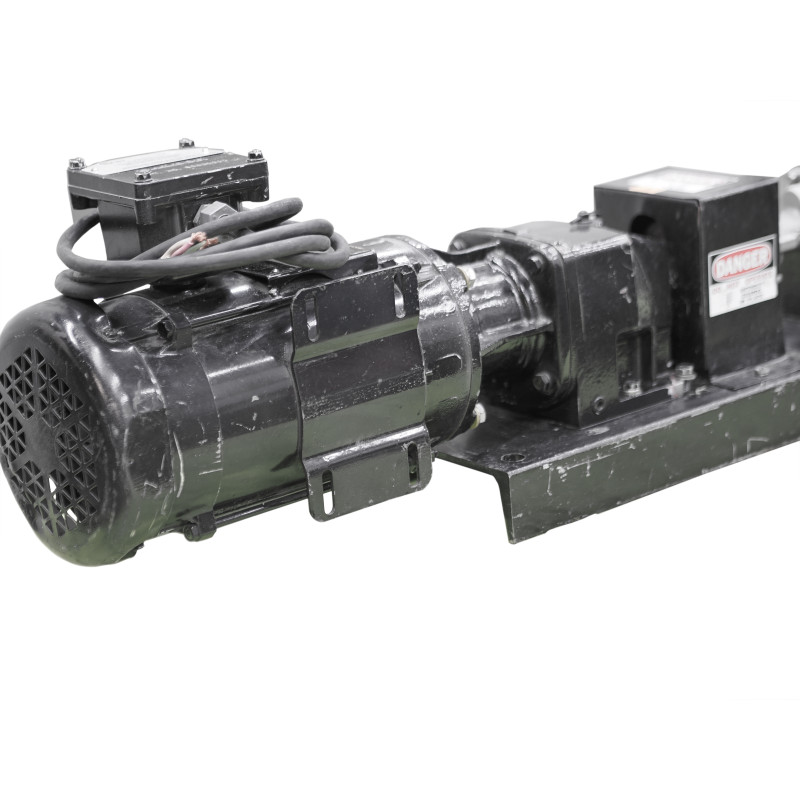

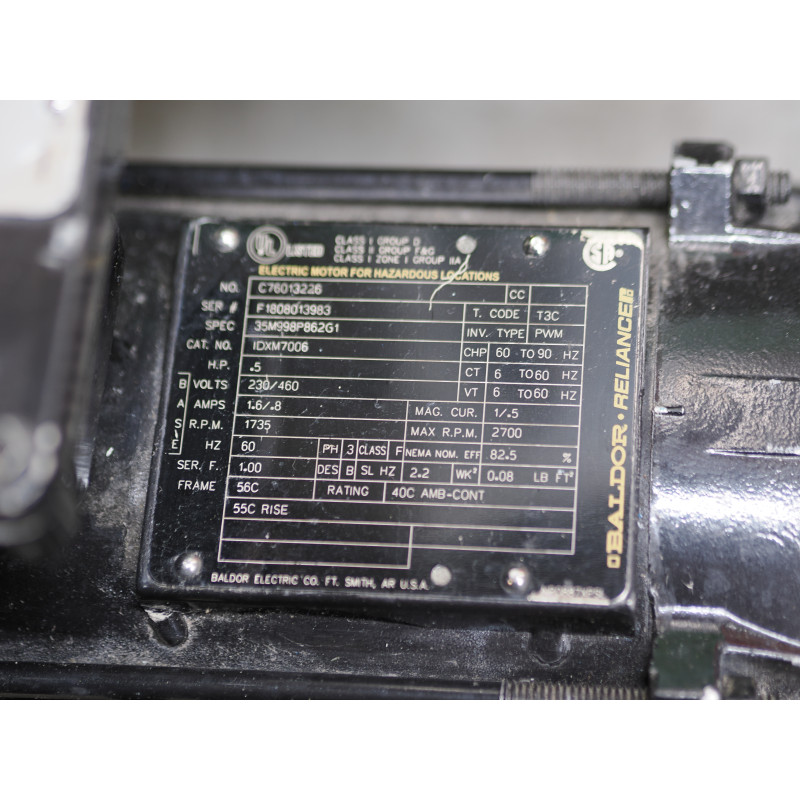

6. 3/4HP 220/460 3 Phase Explosion Proof Motor EX

7. High pressure by-pass valve is available

8. 1/2" NPT Ports - we can adapt to high pressure fitting, JIC or leave as is.

9. 10 feet power cord

Port Connections	1/2" NPT
Max Flow Rate	2.4 GPM; 9.1 LPM
Max Differential Pressure	225 PSI; 15.5 BAR
Max Discharge Pressure	300 PSIG; 20.7 BARG
Max Temperature	500 °F; 260 °C
Min Temperature	-40 °F; -40 °C
Max Viscosity	100,000 CPS (mPas)
Max Speed	1750 RPM
NPSHR @ Max Speed	2 FT; 0.6 M
Lift (Dry) @ Max Speed	2 FT; 0.6 M
Weight (without motor) Sealed, Long-Coupled Sealed, Close-Coupled Mag, Close-Coupled	3.5 LBS; 1.6 KGS 24 LBS; 11 KGS 32 LBS; 14.5 KGS
