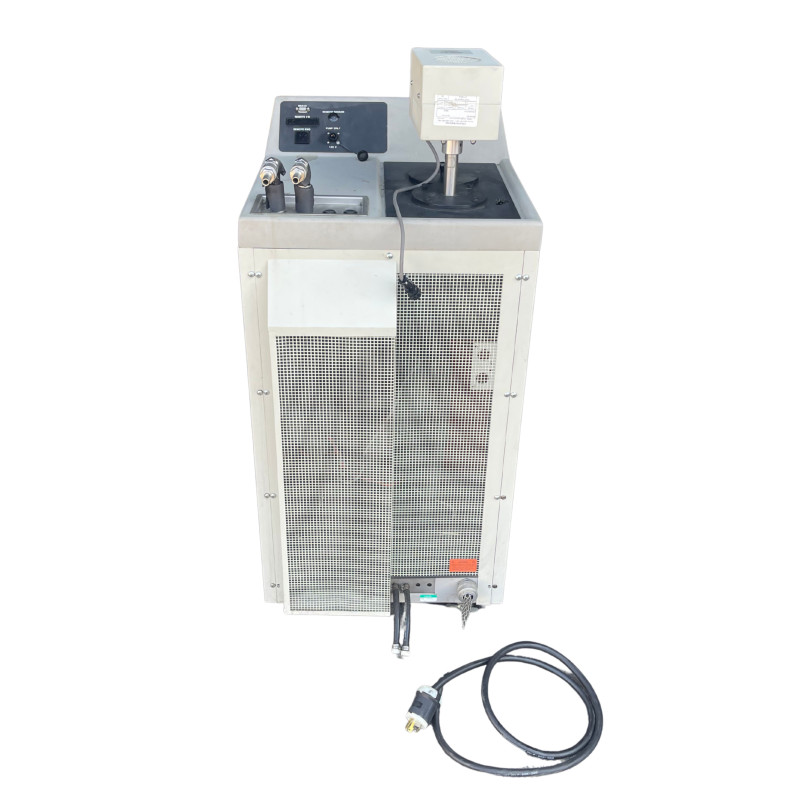

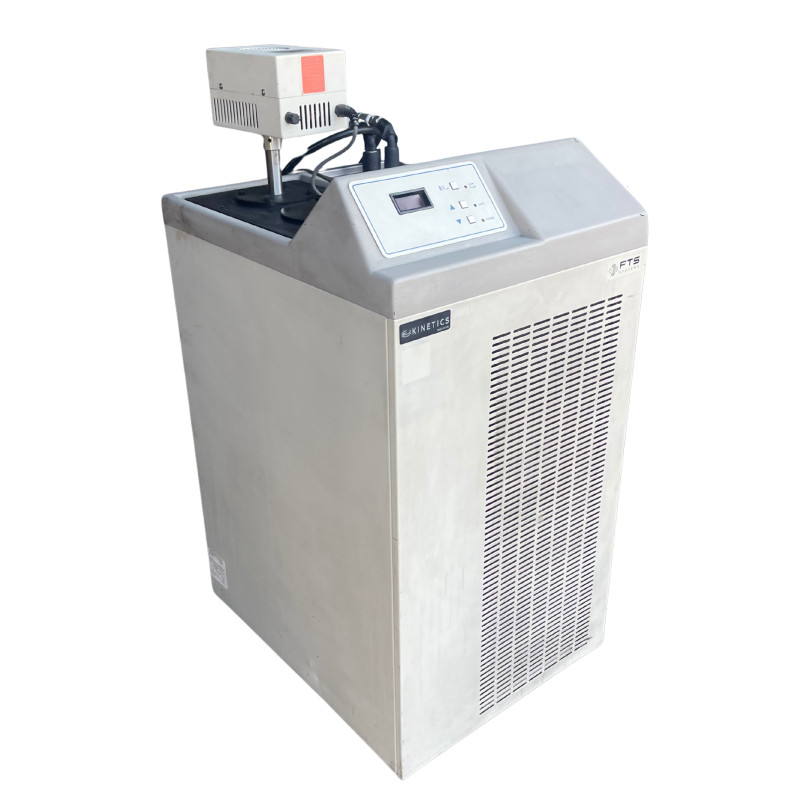

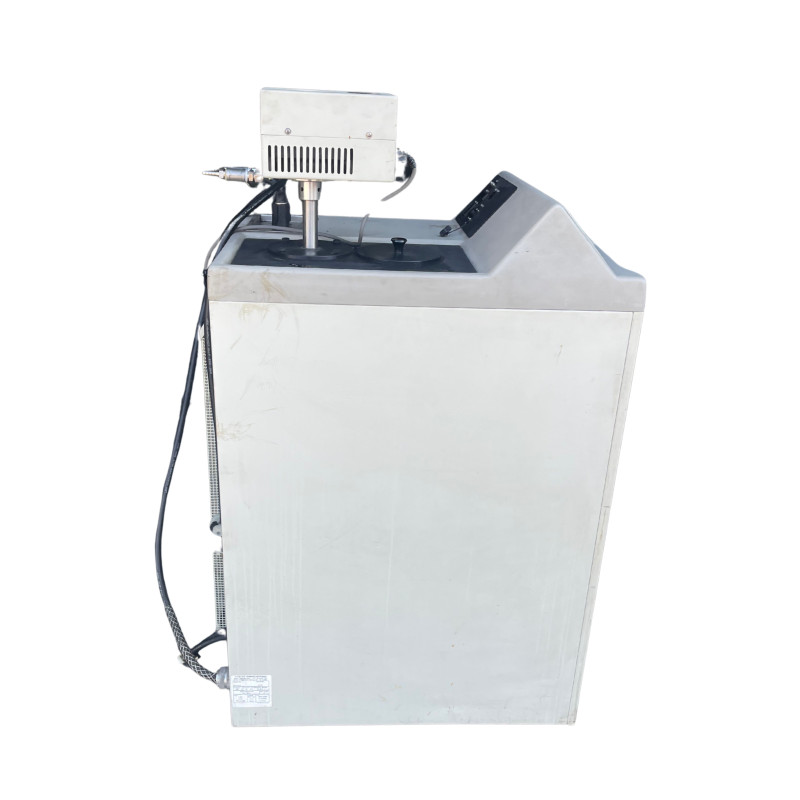

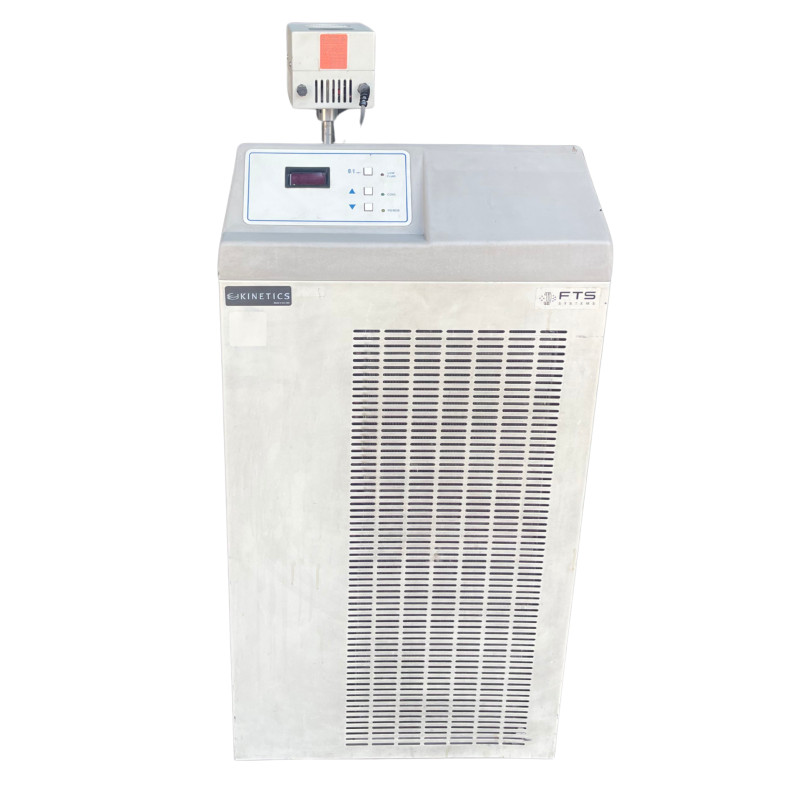

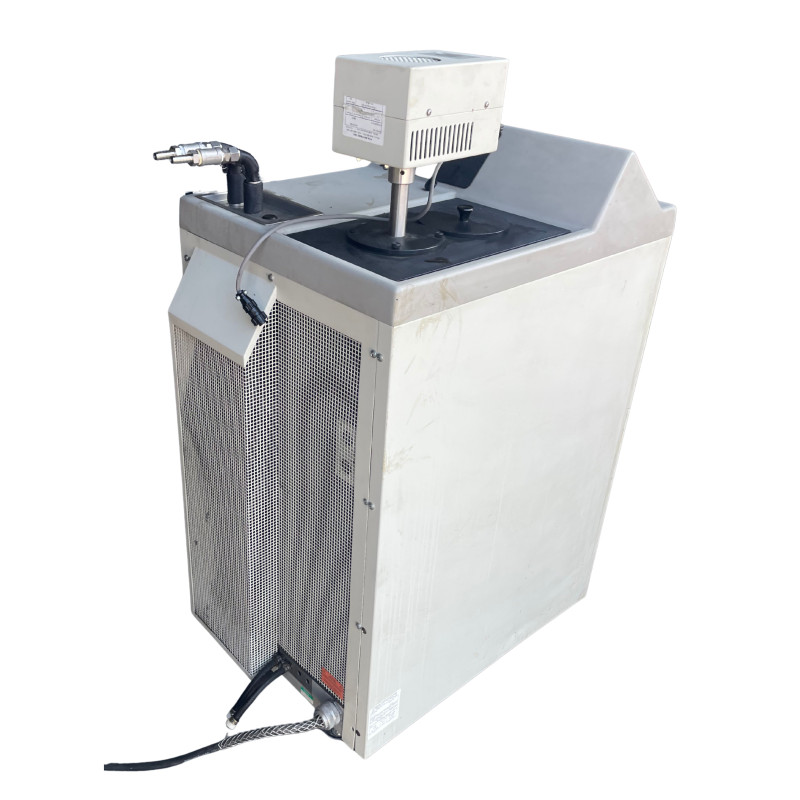

Recirculating Chiller -80C Kinetics Thermal Systems FTS RC210C0 (preowned)

Model	RC210	RC211	RC311	RC311GWT
	Watt/BTU	Watt/BTU	Watt/BTU	Watt/BTU
-20°C	1350/4610	1350/4610	3400/11590	3400/11590
-30°C	1250/4260	1250/4260	3000/10230	3000/10230
-40°C	1150/3925	1150/3925	2700/9207	2700/9207
-50°C	1000/3410	1000/3410	2400/8184	2400/8184
-60°C	880/3005	880/3005	1800/6130	1800/6130
-70°C	550/1877	550/1877	1200/4090	1200/4090
-80°C	-	-	500/1705	500/1705

Temperature Range °C	-80 to -10 °C	-80 to 75 °C	-90 to 75 °C	-75 °C to 150 °C
Reservoir Liters	5	5	5	11.6
Compressor	2 @ 1hp	2 @ 1hp	2 @ 4hp	2 @ 4hp
Controller Interface (RS232)	Digital / RS232	Deluxe Digital / RS232	Deluxe Digital / RS232	Deluxe Digital / RS232
Control Stability ± °C	0.1	0.1	0.3	0.3
Heater (Nominal 240V)	0	1500W	1500W	3500W
Pump: Standard - Centrifugal	2 to 3 gpm @ 22 psi 4 gpm up to 85 psi
Dimensions (w x d x h) cm inches	53 x 74 x 122 21 x 29 x 48	53 x 74 x 122 21 x 29 x 48	53 x 74 x 145 21 x 29 x 57	53 x 74 x 145 21 x 29 x 57
Weight kg / lbs	177 / 390	177 / 390	227 / 500	227 / 500
Electrical Configuration 60Hz Option50 Hz Option2	208 or 230 V220 V, 1 Phase	208 or 230 V220 V 1 Phase	208 or 230V 3 Phase	208 or 230V 3 Phasa
Water Connections	1/2-in NPT, male 1/2-in NPT, female
Air-Cooled Condenser	Standard	Standard
Water-Cooled Condenser			Requires 3 to 6 gpm 12 °C to 22 °C
