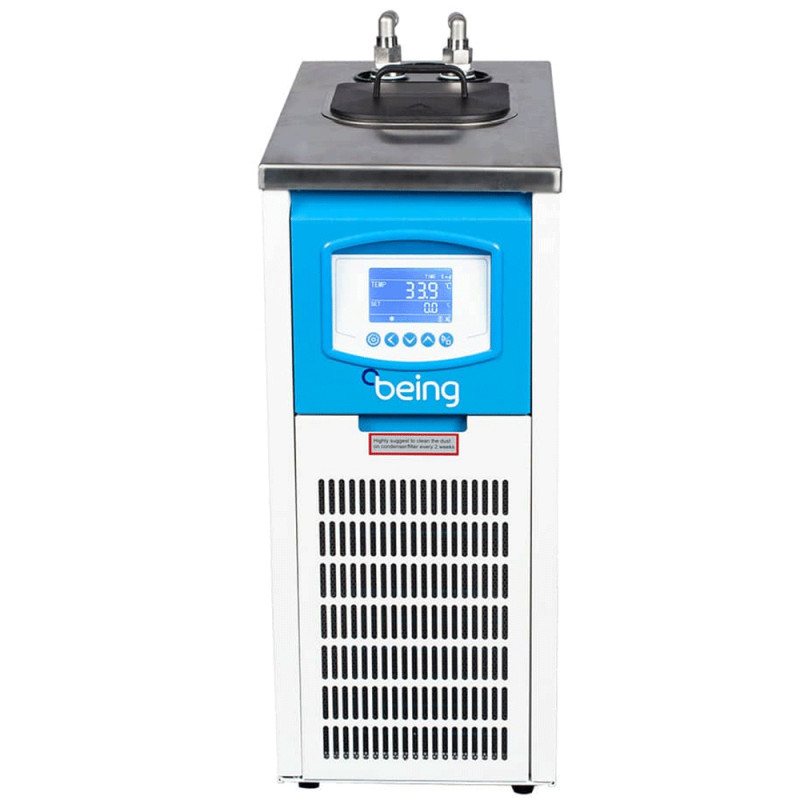

Recirculating Chiller BRC-05 Being

The BEING BRC Series cooling/heating recirculating chillers provide continuously reliable and stable laboratory temperature control for a wide range of applications like medical diagnostic equipment, rotary evaporators, vacuum systems, plasma etching, laser etching, and jacketed reactors, to name a few.

Performance Features Recirculating Chillers BRC-05 Controller Features • Temperature Range: –20o C to 20o C • Max. Flow Rate: 17 L/min • Max. Pump Head: 15 meters • Max. Pump Pressure: 22 psi / 152 kPa

Safety Features • PID automatic control provides accurate and reliable temperature control • Large intuitive LCD display • Automatic power on/off • Compressor lock-out prevents over cycling of the compressor • Programmable function  Fixed value program  Multi-step: 8 programs, 8 steps  Untimed and timed programs  Program time from 1 minute to 99 hours 59 minutes • Independent over-temperature protection meets DIN 12880 International standard requirements • Temperature limit protection • Over-current protection • Power off memory

Recirculating Chiller, BRC-05, 0.3 Cu Ft (Storage Tank 8L), Liquid 5.2 L, Temp. : -20°C to 20°C, Temp Stability: ± 2°C, Refrigerant: R404A, 115VAC / 60Hz, Noise (dB) : ≤45, Exterior dimension: 315 x 455 x 624 mm (H x W x D), Locking Casters

Cooling Feature
Lowest Temp Without Load (°C): 20°C
Temperature Range (°C): 20°C to 20°C
Temperature Stability (°C): ±2°C
Cooling capacity(W)@20°C: 900
Cooling capacity(W)@10°C: 800
Cooling capacity(W)@0°C: 730
Cooling capacity(W)@-10°C: 570
Cooling capacity(W)@-20°C: 250
Refrigerant: R404A

Electrical
Whole unit power(W):  600
Power Requirement: AC 115V/60Hz

Pump
Pump type: DC Magnetic Drive Vortex
Recirculating Pump Power(W): 30
Pump Flow Rate(L/min): 6
Max. Pump Head(m):  9
Pump Max. Pressure (psi): 13 (90KPa)
Inlet/Outlet Tube OD(mm): Ø10 (DN15)

Other Features
Feet / Caster: Locking Casters
Noise (dB): =45
Dimensions
Liquid Tank (H x W x D) (mm): -
Exterior (H x W x D) (mm): -
Net Weight(kg): 41
Liquid tank Dimension(mm):  240 x 200 x 170
Exterior Dimension(mm)(Excluding casters): 315 x 455 x 624
Supported Rotavaps(Capacity x Units): 5L x 1
