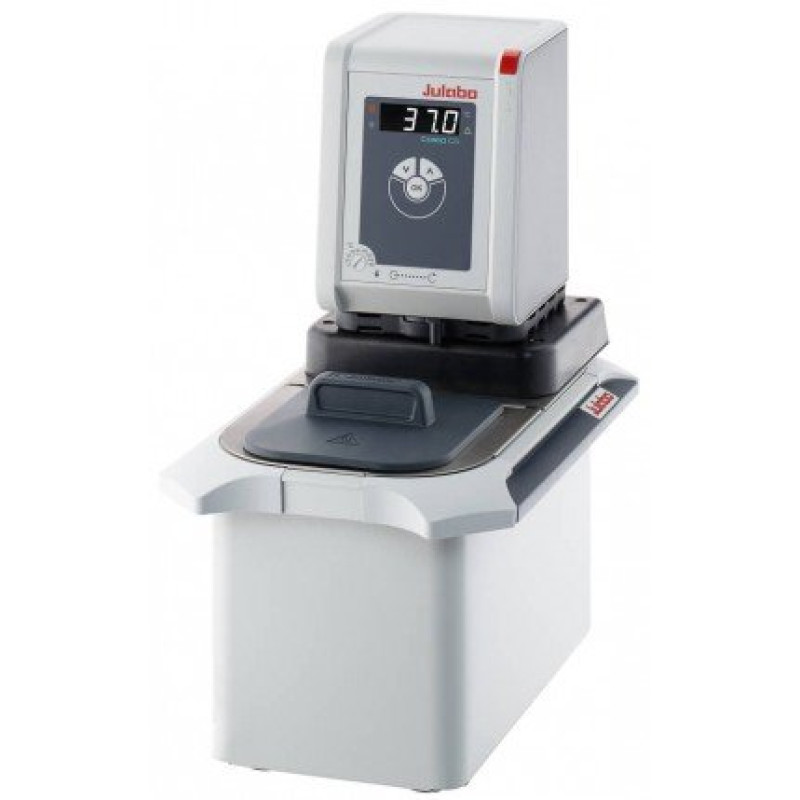

230V Julabo CORIO CD-Series Heating Circulator with Insulated Stainless Bath (pre-owned)
Julabo CORIO CD-Series Heater Heating Circulator with Insulated Stainless Bath
Technical Data
Temperature
| Working range | +20 to +150 °C |
| Stability | ±0.03 °C |
| Display resolution | 0.01–0.1 °C |
| Control | PID1 |
| Calibration | 1-point |
| Display / setting | LED / keypad |
Near or below ambient needs a cooling coil or immersion cooler.
Heat and pump
| 230 V | ||
|---|---|---|
| Heating capacity | 2 kW | |
| Pump flow | 15–17 L/min | |
| Pump pressure | 0.35 bar (up to ~0.43 bar on 230 V/60 Hz) | |
| Max viscosity | 50 cSt | |
| Current | 10 A |
Pump is a pressure / immersion pump. Optional pump set for external circulation (M16×1).
Mechanical
| Dimensions (W × L × H) | 13.2 × 16 × 36.6 cm (5.2 × 6.3 × 14.4 in) |
| Weight | 2.6 kg (5.7 lb) |
| Usable immersion depth | 16.6 cm |
| Min. bath depth | 15 cm |
| Min. fill below tank rim | 4.5 cm |
| Max. bath volume | 50 L |
Safety / interfaces
- DIN 12876-1: Class III (FL)
- IP21
- USB
- Ambient: +5 to +40 °C
- Cooling coil: accessory
230V Julabo CORIO CD-Series Heating Circulator with Insulated Stainless Bath (pre-owned)
- Brand: Julabo
- Product Code:CORIOCD
- Availability:In Stock
-
US$ USDT 1,196.24
