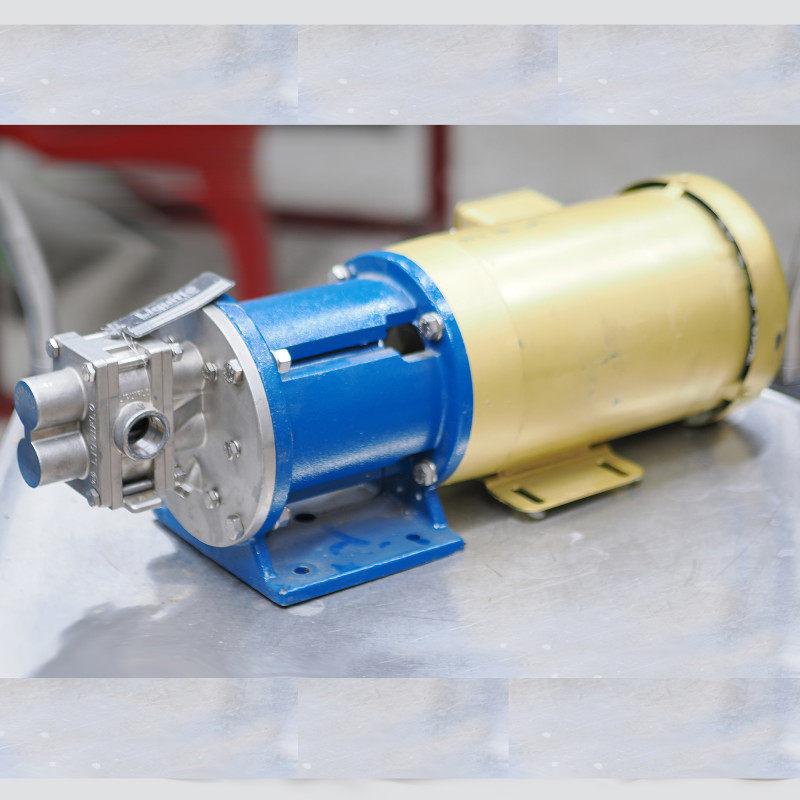

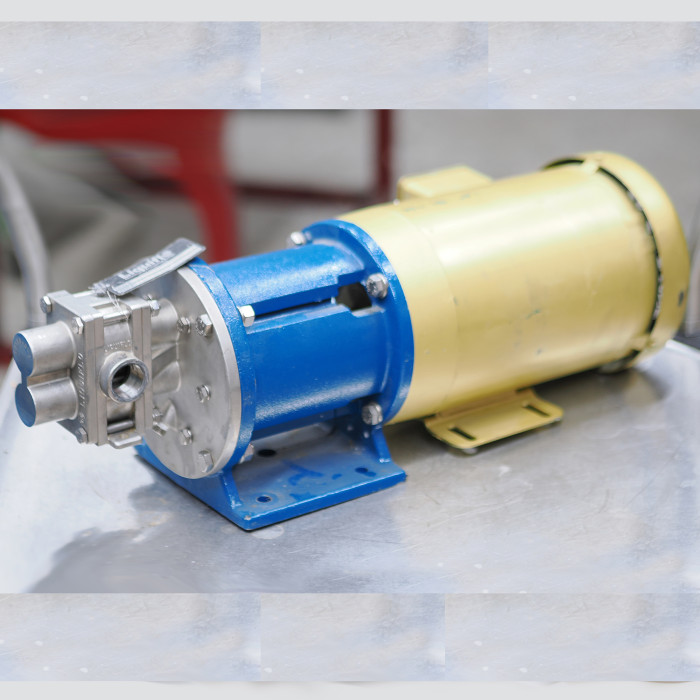

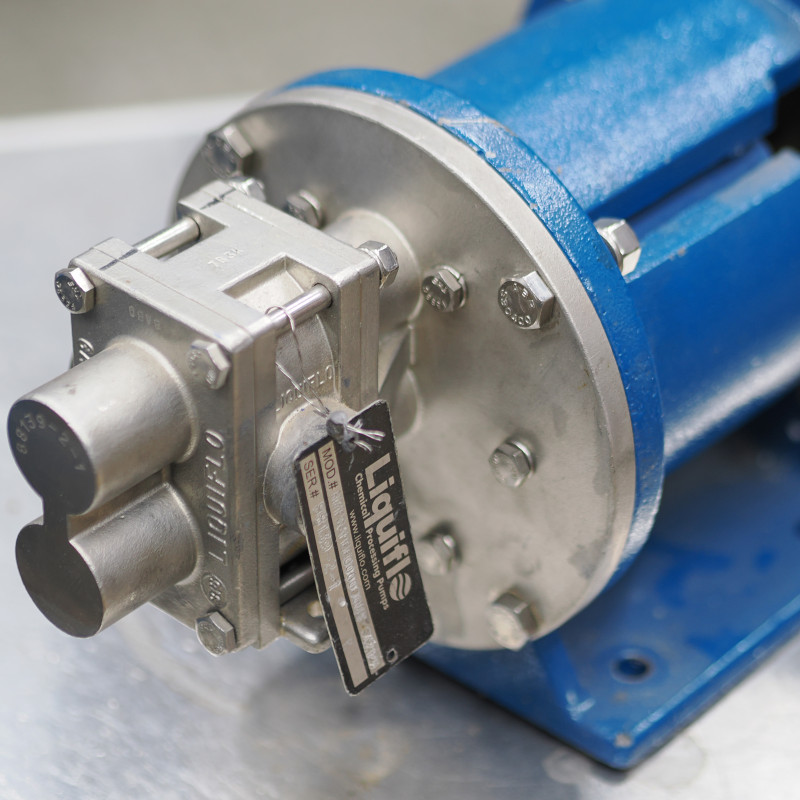

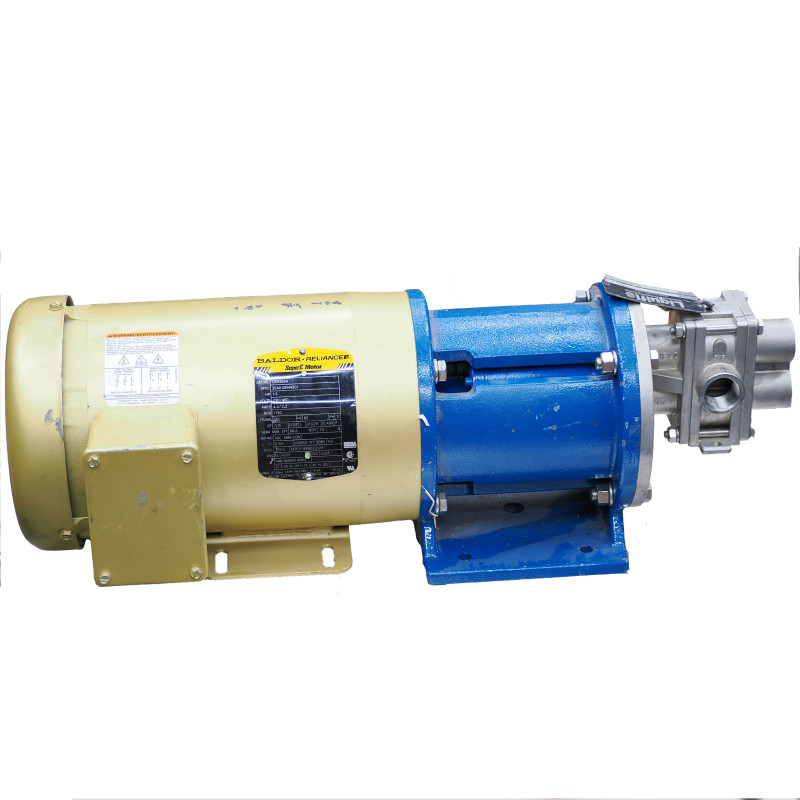

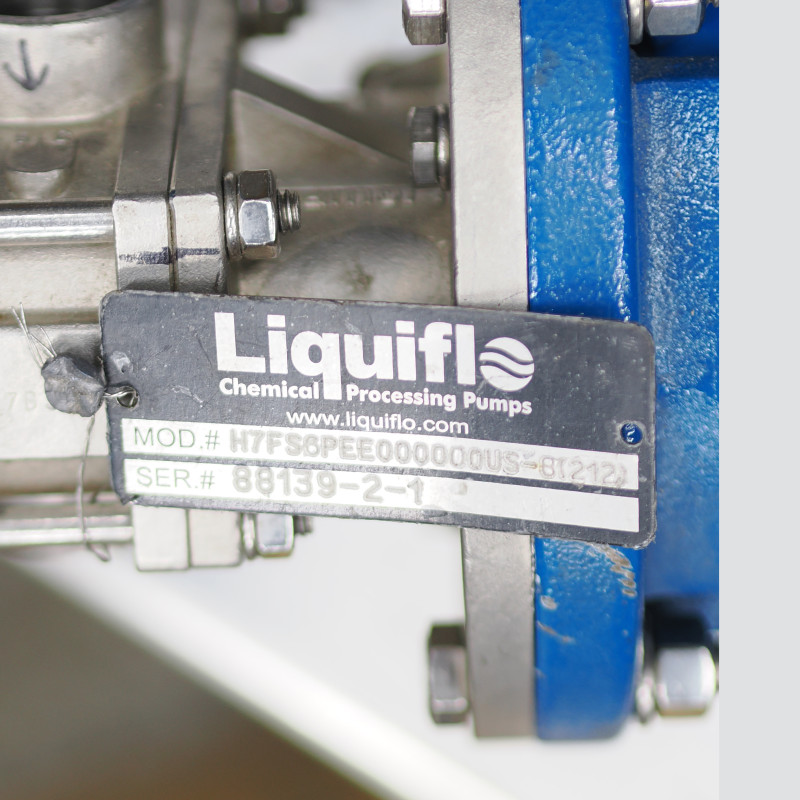

H-SERIES MODEL

H7F

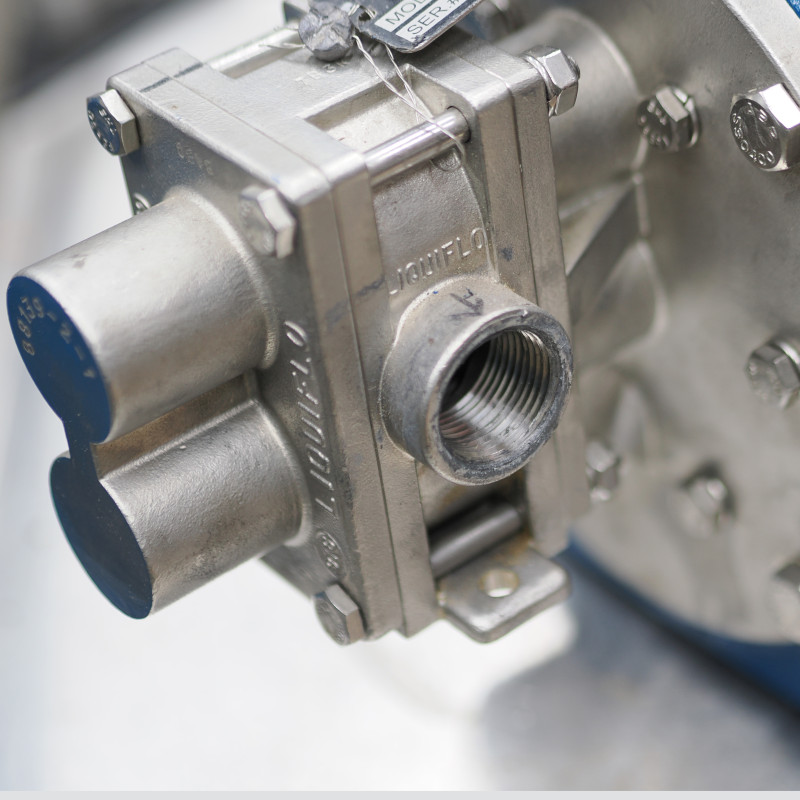

Port Connections:
  NPT/BSPT
  ANSI 150# RF FLG
  DIN PN16 RF FLG

in
in
mm

3/4
3/4
20

Max Flow Rate

GPM

10.7

Max Differential
Pressure

PSI

225

Max Discharge
Pressure

PSIG

225

Max Temperature

°F

500

Min Temperature

°F

-40

Max Speed

RPM

1750

NPSHR @ Max Speed

ft (a)

5.2

Weight (less motor)

  Sealed, Long-Coupled
  Sealed, Close-Coupled
  Mag, Close-Coupled
  Mag, Long-Coupled

lbs

6.5
29
36
-
