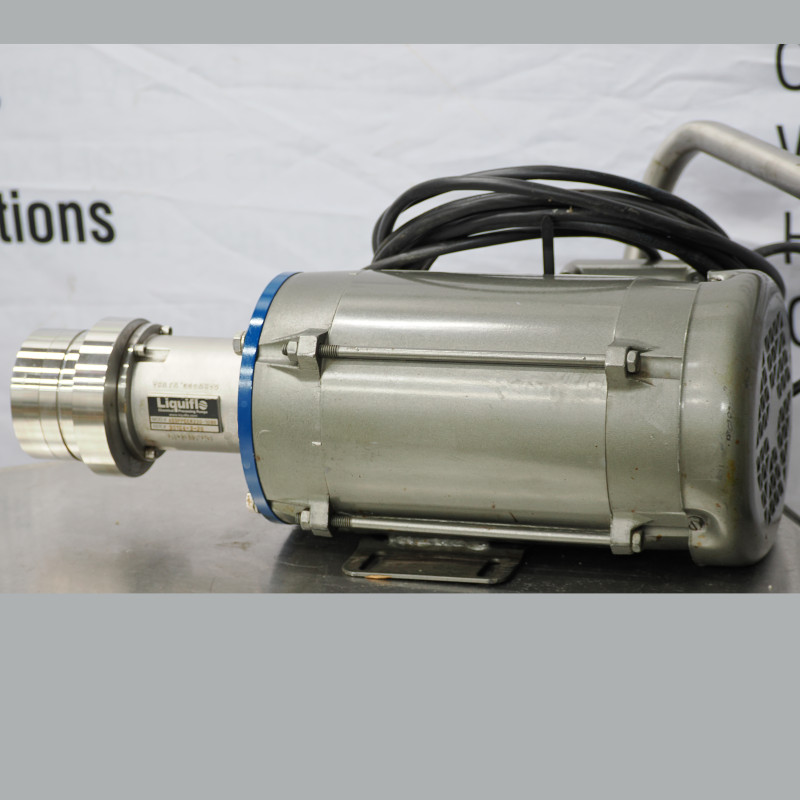

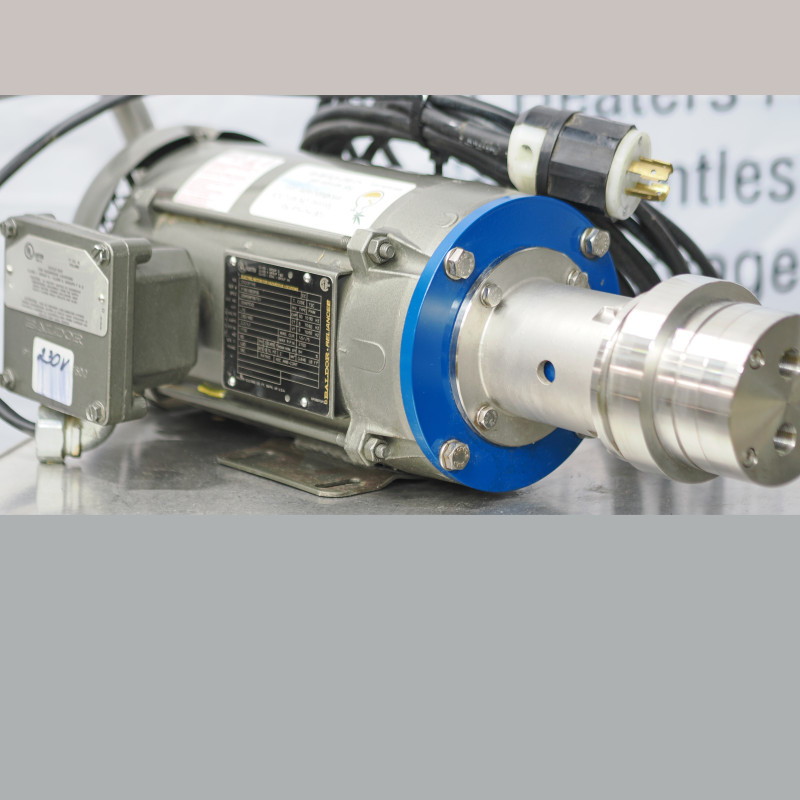

Liquiflo 45SPPEER220 Gear Pump with Baldor Explosion Proof motor EX

Perfect working and cosmetic condition.

Liquiflo 4-Series Gear Pump is manufactured from 316 Stainless Steel and is featuring Mag-drive configuration.
The 4-Series Gear Pumps were designed for OEM applications such as chemical feed systems.
These pumps offer a large selection of materials to cover a wide variety of chemical processing applications.

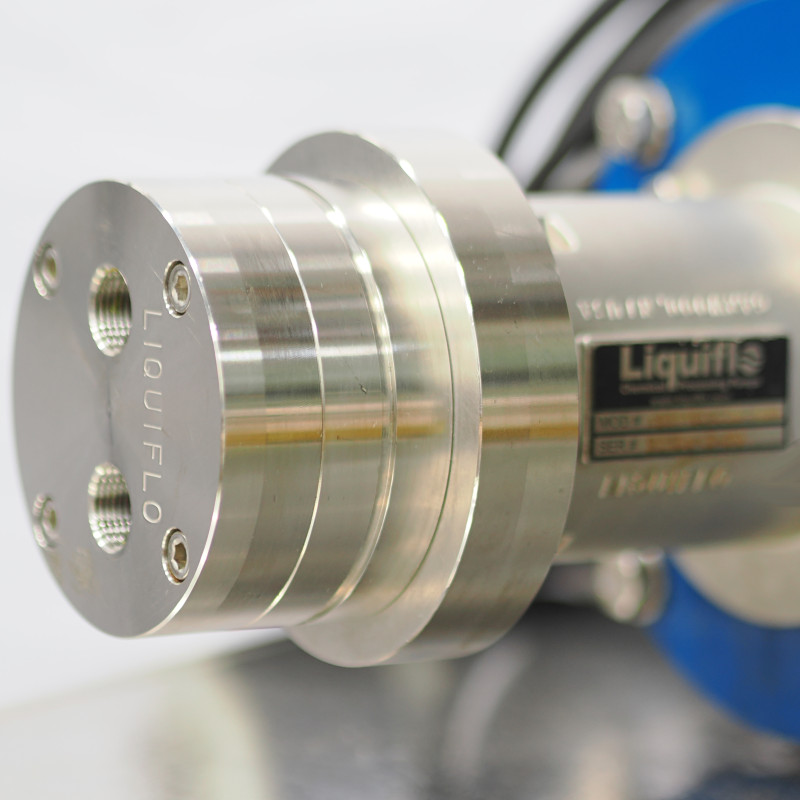

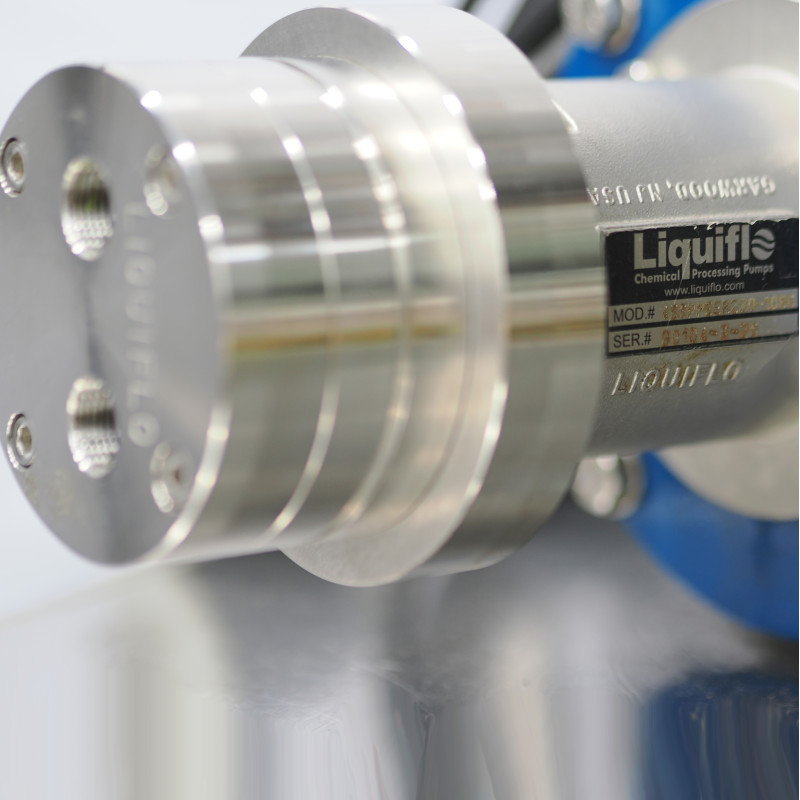

A unique feature of the 4-Series pump is its parallel port connections located on the front of the pump.

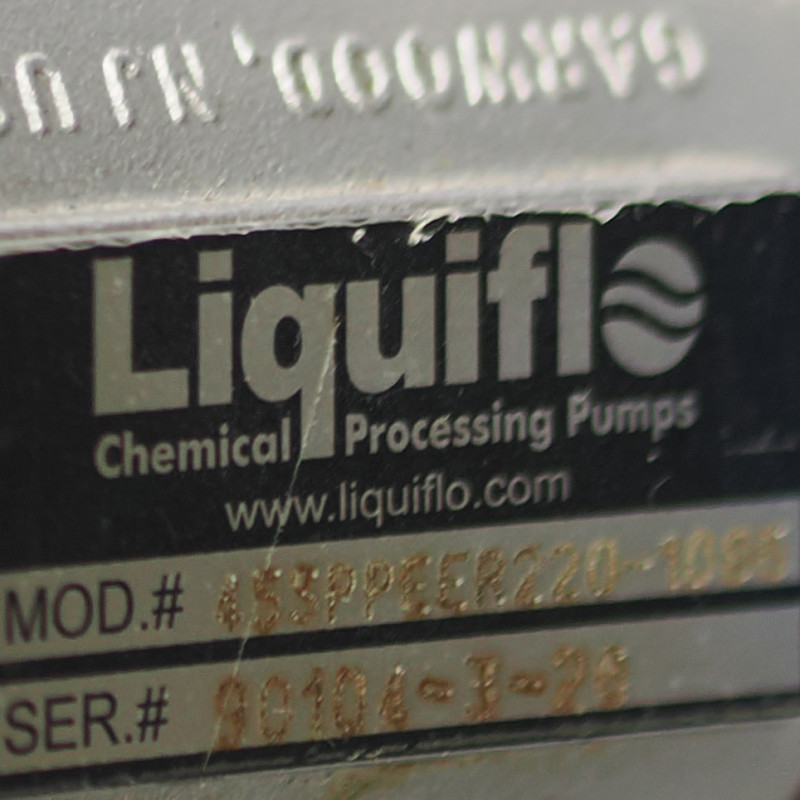

1. Liquiflo Series 45 gear pump

2. SS316 Food Grade 316 Stainless Steel Housing

3. PEEK Gears handle high temperatures

4. Carbon 60 Bearings and Plate

5. 30lb torque Magnetic Coupling

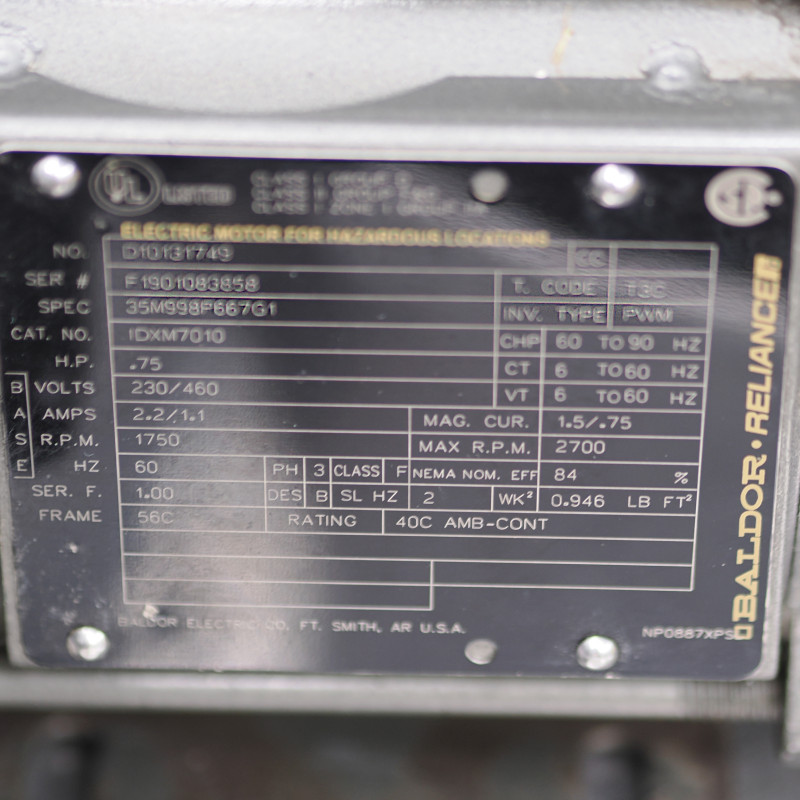

6. 3/4HP 220/460 3 Phase Explosion Proof Motor EX

7. High pressure by-pass valve is available

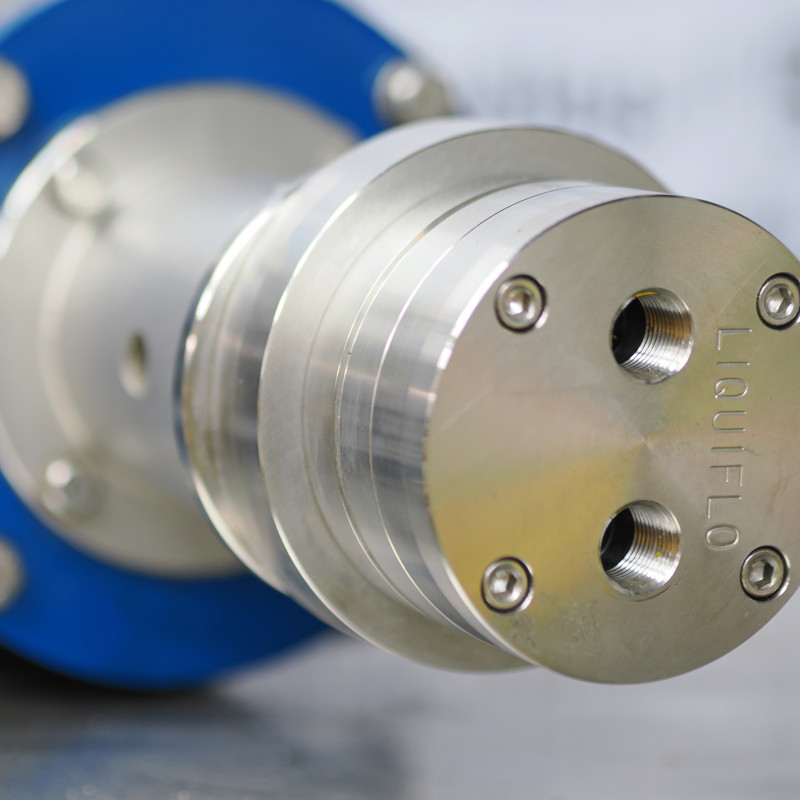

8. 3/8" NPT Ports - we can adapt to high pressure fitting, JIC or leave as is.

9. 10 feet power cord with L15-20 NEMA 3 phase plug

Port Connections	3/8" NPT
Max Flow Rate	3.4 GPM; 12.8 LPM
Max Differential Pressure	100 PSI; 6.9 BAR
Max Discharge Pressure	300 PSIG; 20.7 BARG
Max Viscosity *	6,600 CPS (mPas)
Max Temperature	500 °F; 260 °C
Min Temperature	-40 °F; -40 °C
Max Speed	1750 RPM
NPSHR @ Max Speed	2.0 FT; 0.6 M
Lift (Dry) @ Max Speed	4.0 FT; 1.2 M
Weight (with motor) Mag, Close-Coupled	60 LBS; 27 KGS
