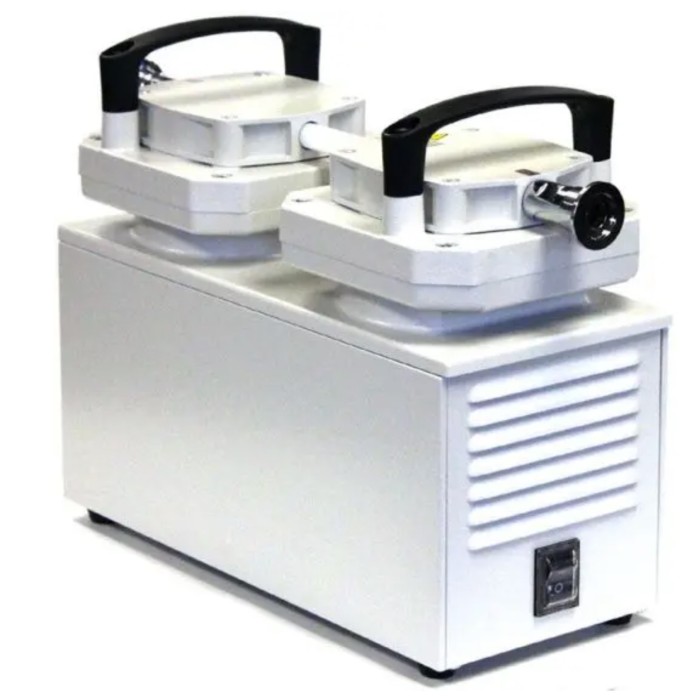

• Ulvac DA-170D Chemical Resistant Vacuum Pump 110V 6 cfm (preowned)


Ulvac DA-170D Chemical Resistant Vacuum Pump 110V 6 cfm (preowned)

Anti-Corrosive Lab Pumping Solution


DA-170D is dual cam pump, rigid and will withstand very harsh environments and will still keep running. We had received lots of praises form our customers who had purchased that pump.


The DA-170D pump is the ultimate small pumping solution for corrosive gases. All contacted components are made of corrosion resistent PTFE or FPM so that your pump won't break down due to the caustic nature of your working gas. DTC pumps come in a small, clean form-factor ideal for use in the laboratory environment. Affordably priced, the DA-170D is the perfect solution for your lab.  Made in Japan.

You can buy DA-170D / UDP-6 vacuum pump in Canada.


Features

  • Chemically resistant — Only parts made from PTFE and FPM contact the pumped gases
  • Available in four sizes from 20 to 240 liters/min.
  • Simplified maintenance
  • Affordably priced


Applications

  • Rotary evaporators
  • Evaporating system
  • Vacuum Concentrators
  • Vacuum filtration systems
  • Gas-transfer tube exhaust
  • Vacuum drying systems
  • Laser-gas circulation
  • Centrifuges
  • Medical/Pharmaceutical equipment
  • Analysis/Scientific equipment



Specifications



 Model ULVAC DA-170D (UDP-6)
 Electrical requirements
110V 50/60Hz or  220V 50/60Hz optional) single phase 5.6A (2.8A)
 Pumping rate
 6 cfm
 Ultimate vacuum level
 6 torr
 Inlet/Outlet
 KF25 flange
 Adjustable vac./gas ballast No
 Unit/shipping dimensions (LxWxH)
 16 x 7 x 13" / 18 x 11 x 14.5"
 Noise level 68 dBA at Atmosphere pressure
 62 dBA at ultimate pressure
 Unit/shipping weight
 58 Lb / 63 Lb
 Working environment 32°F to 104°F (0°C to 40°C)
 Compliance TUV certified to UL and CSA standards
