Specification

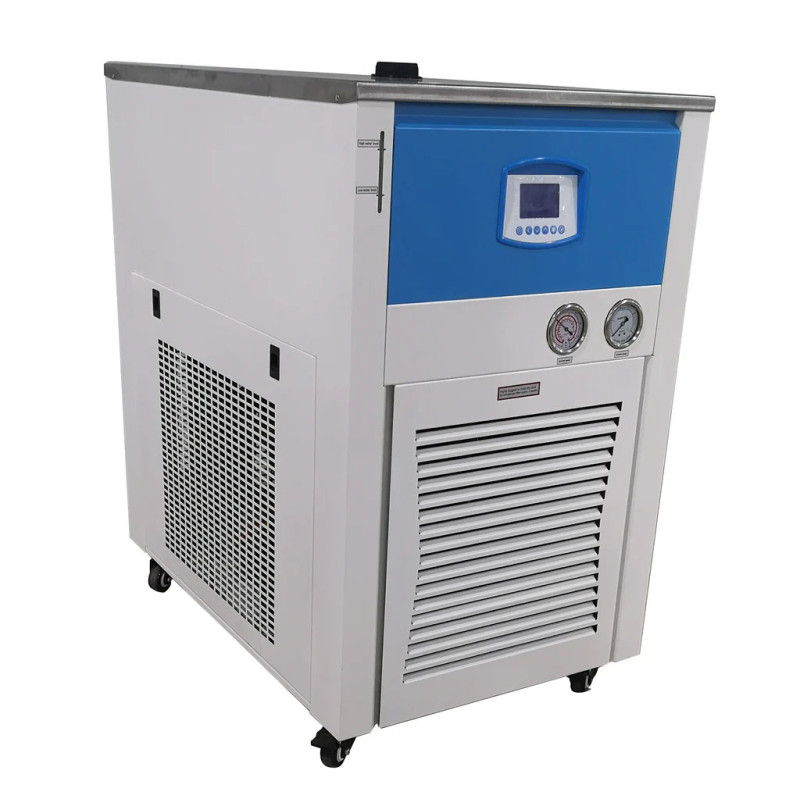

Product Name		Circulation tank device
Model		BWR-S40B
Storage tank volume (L)		40
Refrigeration performance	Temp setting range (℃)	﹣30℃～20℃
	Working environment temp (℃)	﹢5～30℃
	Temp fluctuation (℃)	±2℃
	Cooling capacity（w）（0℃）	5000
	Cooling capacity（w）（-10℃）	3000
	Refrigerant	R410A
Electrical performance	Sensor	pt100
	Controller, monitor	liquid crystal
	Computer interface	R485（optional）
	Safety protection	Compressor delay protection, machine leakage, over-current, over-voltage protection
	Power（W）	2800
	Power	AC220V±10%/60HZ
Pump	Maximum flow（L/min）	30
	Maximum lift（m）	2.5
	Liquid inlet and outlet pipe diameter (mm)	Φ18
	Machine noise (dB)	≤65
Whole machine	Total Weight (Kg)	95
function	Out size (mm)	400×600×700
	Adaptation rotary evaporator (volume* number)	20L*1
Note	Can customize the equipment according to different supply voltage frequency; can customize different flow head external circulation system according to requirements; can customize external magnetic stirring device.
