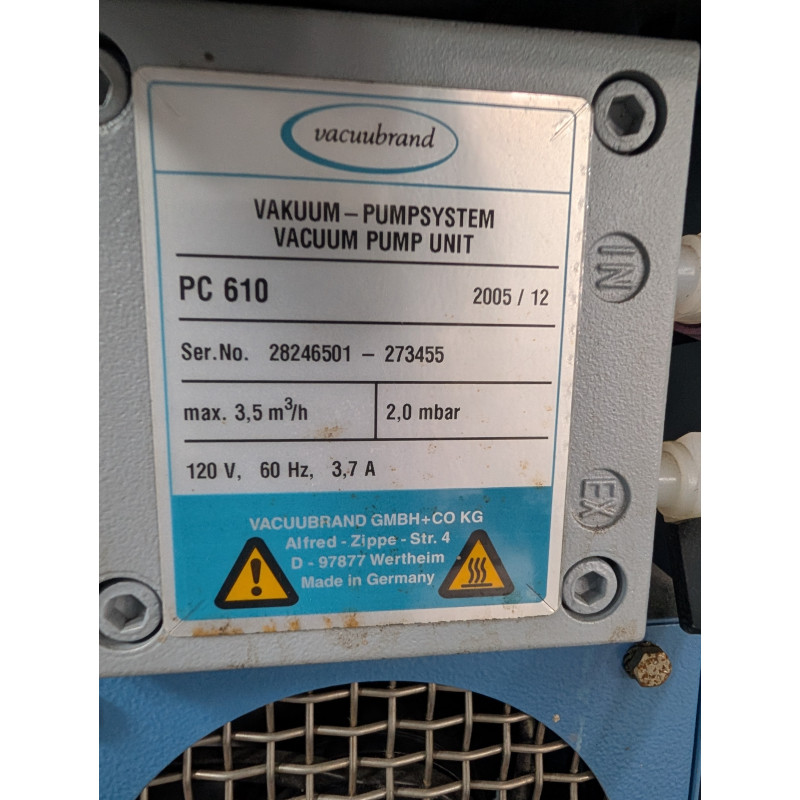

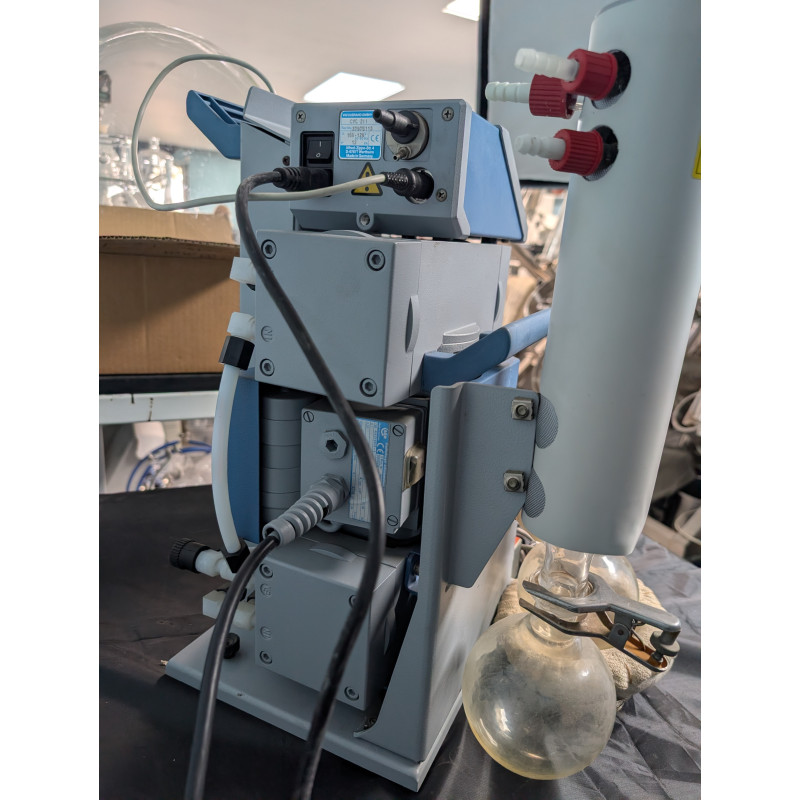

Vacuubrand Vacuum Pump Unit System PC-610 with heater and heating controller

Vacuubrand 4 Chamber Chemical Resistant Vacuum Pump (pre-owned)

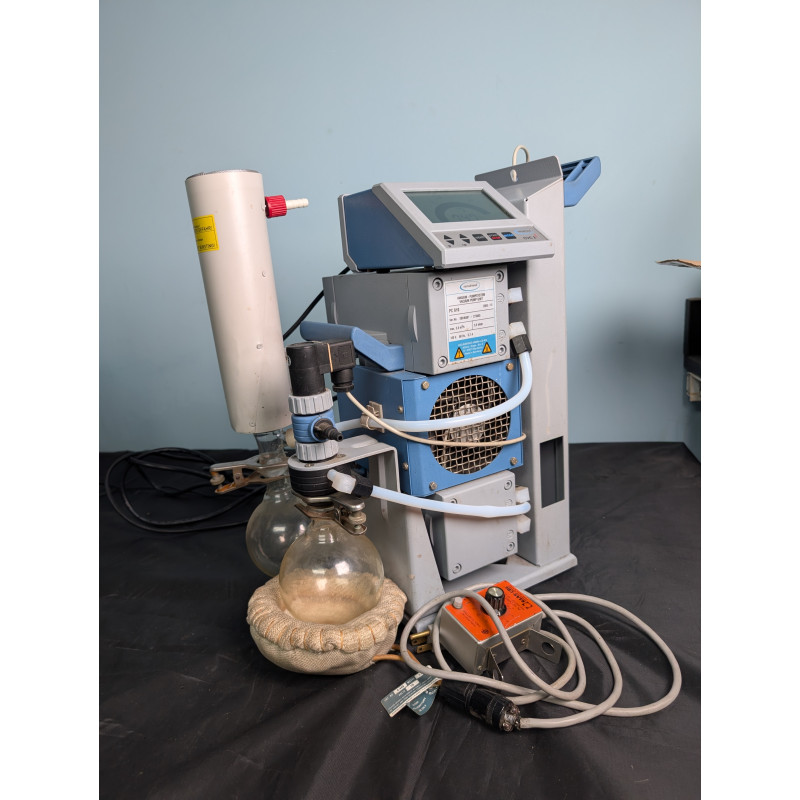

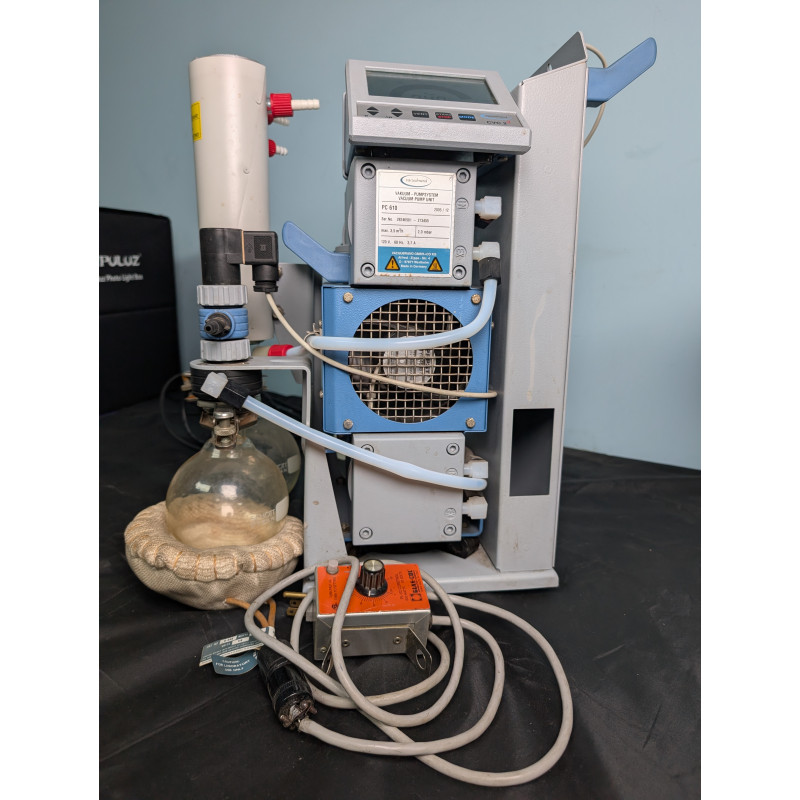

Chemistry pumping unit in action

Our PC 600-series chemistry pumping units of this series are an excellent choice for supporting electronically controlled evaporation or drying processes with even many high boiling point solvents. Our popular MD 4C NT three-stage chemistry diaphragm pump, with its 2 mbar ultimate vacuum rating, is the heart of these pumping units. Typical applications include lab applications such as rotary evaporation, vacuum drying ovens, and vacuum distillation. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications. The VACUU·SELECT controller has you covered. Use manual set-point-control for simple processes, run distillations, or create your own application with simple drag-and-drop editing. For solvent evaporation, it constantly monitors the pressure and switches to 2 point control mode to hold the pressure stable when a boiling point is detected. The controller also allows for easy manual vacuum control for simple processes. The inlet separator, made of glass with protective coating, prevents particles and liquid droplets from entering the pump. The exhaust vapor condenser provides nearly 100% recovery of solvents for economical recycling and environmental protection.

Information on the disposal of old devices »


Technical data and graphs

Max. pumping speed 50 Hz	3.4 m3/h
Max. pumping speed 60 Hz	2.2 cfm
Ultimate vacuum	1.5 mbar / 1.1 torr
Ultimate vacuum with gas ballast	3 mbar / 2.2 torr
Number of heads	4
Number of stages	3
Vacuum controller	VACUU·SELECT
Lower ambient temperature (operation)	10 °C
Upper ambient temperature (operation)	40 °C
Lower ambient temperature (storage)	-10 °C
Upper ambient temperature (storage)	60 °C
Max. back pressure (abs.)	1.1 bar
Inlet connection	Hose nozzle DN 8-10 mm
Outlet connection	Hose nozzle DN 8-10 mm
Coolant connection	2 x hose nozzle DN 6-8 mm
Rated motor power	0.25 kW
Rated motor speed at 50/60 Hz	1500/1800 min-1
Protection class IEC 60529	IP 20
Dimension L in mm	419 mm
Dimension B in mm	243 mm
Dimension H in mm	457 mm
Weight	20.9 kg
Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®)	45 dBA
NRTL certification	No
Items supplied	Pumping unit completely mounted, ready for use, with manual.
Rated mains voltage range 1	100-115 V
Rated mains voltage range 2	120 V
Mains frequency 1	50-60 Hz
Mains frequency 2	60 Hz
Interface	Ethernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required)

This vacuum pump has been tested by our Pump Specialist and is working at or near manufacturer's specifications

***60 days warranty***

You can buy ME-8 in a few steps on our website.

• PTFE sandwich diaphragms and valves made of perfluoro elastomer or PTFE
• internal tubing and fittings made of PTFE/ETFE/ECTFE compounds
• exceptional diaphragm lifetimes with ultra-durable PTFE sandwich design
• head cover and clamping disc made of fluoro compounds with stability core for unsurpassed long-term performance
• very long service intervals for low lifetime cost-of-ownership

Chemistry diaphragm pumps, chemistry vacuum systems and chemistry pumping units

Our chemistry diaphragm pumps are available in a full range of volume flow rates and ultimate vacuum options. Single-stage models reach as much as 70 mbar (absolute) vacuum. Connecting pump heads in series as two-, three- or four-stage pumps improves an ultimate vacuum to as much as 0.6 mbar. Connecting heads in parallel provides higher flow rates. Our line offers combinations that satisfy virtually any laboratory need.

Nomenclature for VACUUBRAND pumps is built from the following codes designating specific features or components:

M = diaphragm (membrane) pump

E, Z, D, V = number of pump stages
E = single stage, up to 70 mbar
Z = two stages, up to 7 mbar
D = three stages, up to 1.5 mbar
V = four stage, up to 0.6 mbar

C = chemistry design, with fluoropolymer flowpath

NT = labels the series of pumps comprising the New Technology

AK = separator catchpot for inlet or outlet condensates, collects particles and droplets, keeps condensate in vacuum line from flowing into the pump, protecting pump performance and providing additional noise reduction on the pressure side

EK = exhaust vapor (emission) condenser for nearly 100 % solvent recovery in compact design, protecting environment and lab air

TE = dry ice or water ice cooled emission condenser for solvent recovery

PC = "Pumping Unit, Chemistry" - a chemistry pump with vacuum control and solvent recovery

Chemistry vacuum system = a chemistry pump with accessories like inlet catchpot and/or solvent recovery

Chemistry pumping unit = a chemistry vacuum system with vacuum control and solvent recovery

SYNCHRO = pumping unit for simultaneous operation of two independent vacuum applications by a single pump

Features

• Chemically resistant — Only parts made from PTFE and FPM contact the pumped gases
• Available in four sizes from 20 to 240 liters/min.
• Simplified maintenance
• Affordably priced

Applications

• Rotary evaporators
• Evaporating system
• Vacuum Concentrators
• Vacuum filtration systems
• Gas-transfer tube exhaust
• Vacuum drying systems
• Laser-gas circulation
• Centrifuges
• Medical/Pharmaceutical equipment
• Analysis/Scientific equipment
